Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Long Drive Range Electric Mining Truck,Large Battery Capacity Electric Mining Truck,Dual Motor Drive Electric Mining Truck

Large Battery Capacity Electric Mining Truck

Dual Motor Drive Electric Mining Truck

محل منبع:

چنگدو، چین

نام تجاری:

ZEVAUTO

گواهی:

ISO, CE

شماره مدل:

xz110ev

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
نام محصول:
کامیون معدن برق
تایپ کنید:
صفر انتشار
نوع فول:
برقی
ابعاد (میلی متر):
9950*3750*4200
فاصله بین دو محور (میلی متر):
4500+1750mm
انتقال:
انتقال سریع کامیون معدن 4 سرعته AMT. Geaer: 6.508-1.000
حداکثر سرعت:
40 کیلومتر در ساعت
تعلیق:
سیستم تعلیق بهار اولئو پنوماتیک جلو + بهار برگ عقب + تعلیق متعادل تقویت شده
فرمان:
فرمان کامل هیدرولیک + فرمان اضطراری
موتوری:
Disc Hub Dual-Motor/LEGO (اختیاری)
سیستم تعلیق:
سیستم تعلیق بهار هیدرو پنوماتیک جلو/تعلیق بهار برگ عقب
سیستم ترمز:
ترمز برقی + ترمز درام ، Eddy Current Retarder (اختیاری)
توان نامی/پیک موتور (کیلو وات):
قطب دیسک: 495/800 ؛ LEGO: 500/800
لاستیک:
رتبه بندی سه ستاره 16.00R25 (TechKing). مارک های دیگر لاستیک در دسترس هستند.
حجم کانتینر (M³):
42 (بارگذاری مسطح)/45 (بارگیری ذخیره سازی)
برجسته کردن:

Long Drive Range Electric Mining Truck,Large Battery Capacity Electric Mining Truck,Dual Motor Drive Electric Mining Truck

,

Large Battery Capacity Electric Mining Truck

,

Dual Motor Drive Electric Mining Truck

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1
جزئیات بسته بندی
بسته بندی برهنه
زمان تحویل
25-40 روز کاری
شرایط پرداخت
T/T، L/C
قابلیت ارائه
25000 واحد در سال
محصولات مرتبط
با ما تماس بگیرید
اکنون تماس بگیرید
توضیحات محصول

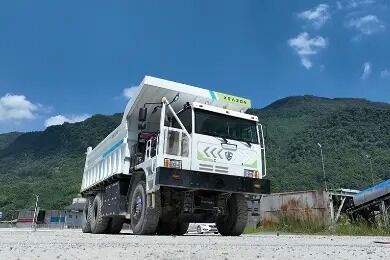

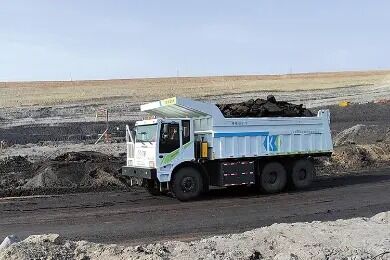

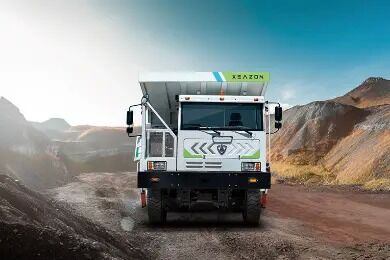

Electric Mining Truck with Full Hydraulic Steering

Zero-emission electric mining truck featuring long drive range and large 528kWh battery capacity, designed for efficient and environmentally friendly mining operations.

Product Specifications
Attribute Value
Product name Electric Mining Truck
Type Zero Emission
Fuel type Electric
Dimensions (mm) 9950*3750*4200
Wheelbase (mm) 4500+1750
Transmission FAST 4-speed AMT mining truck transmission. Gear: 6.508-1.000
Max speed 40km/h
Suspension Front oleo-pneumatic spring suspension + Rear leaf spring + Reinforced balanced suspension
Steering Full hydraulic steering + emergency steering
Drive motor Disc hub dual-motor/Lego (optional)
Brake system Electric brake + drum brake, eddy current retarder (optional)
Motor rated/peak power (kW) Disk hub: 495/800; Lego: 500/800
Tire 16.00R25 three-star rating (Techking). Other brands available.
Container volume (m³) 42 (flat loading)/45 (stowage loading)
Model XZ95EV Technical Parameters
Vehicle dimension (mm) 9400*3750*4000
Minimum ground clearance 400mm
Battery Capacity 528kWh, LiFePo4
Power motor Dual motor 900K: 495kW/2000rpm/2380Nm
Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive 0
Key Advantages
  • Zero emission environmentally friendly operation
  • 60-70% lower energy costs compared to diesel
  • Reduced maintenance requirements
  • Lower center of gravity improves stability on slopes
  • Meets EPA Tier 5/EU Stage V emissions standards
  • Safe and reliable operation with strong power output
  • High operation efficiency and comfortable driving experience
Customization Options

Electric mining truck configurations available to meet specific operational requirements.

About ZEV

Headquartered in Chengdu, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

With two production plants and annual capacity of 25,000 units, ZEV offers a 5m-18m product lineup of battery electric buses and coaches. In 2022, ZEV was awarded 825 units of 12m full electric city buses for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive 1
